KAWASAKI NINJA 250R FULL SYSTEM

*Standard Mount Systems are now discontinued*.  We do still offer the High Mount Race System.  Please see the High Mount Race system website page for more information.   For those wanting a slightly quieter version, you can now special order the High Mount Race System with the Long Quiet Core Muffler option.



Kawasaki Ninja 250R exhaust 2008
R&D bike shown affectionately dubbed "Skittles"
with prototype exhaust installed

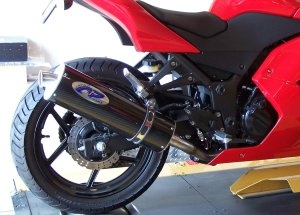

New Kawasaki 250R Ninja exhaust system
Optional quiet muffler
Quiet muffler insert
Dual Element Insert - Sound Attenuator
Aftermarket exhaust with quiet insert
DEI installed.

Fits 2008 - 2012 models - Carb and FI models. Features multi-stepped 304 series stainless steel head pipes integrated to a 2 - 1 merge collector. This is followed by additional stepped and tapered tubing changes exiting into a 12" carbon fiber muffler with 2.0" core and turn down tip.  High velocity with continued expansion on smaller displacement engines is critical to increasing power. Optional Stainless steel muffler is available as well. Huge power increase over OEM and/or Slip-On muffler. The polished muffler body clamp is laser cut from 304 series stainless steel with extruded rubber insulators. A stainless steel T-Bolt clamp is utilized on the muffler inlet.

*11/24/14 - All systems now come standard with our Flat Conical Billet End Cap.  To view our new Flat Conical Billet End Cap, go to our "Custom & Universal" web page.

All systems now include Area P custom exhaust port gaskets at no extra charge.  Area P designed gaskets feature additional "crush volume" for superior sealing.

Optional Long Quiet Core Muffler - 18" muffler with 1.75" core. Available in Carbon Fiber only.  Significantly quieter than the Standard muffler.  Overall power is virtually identical to the standard muffler, but with a much lower sound level.



Dynojet Jet Kits - We highly recommend rejetting for optimum performance and throttle response.  We stock Dynojet Kit # 2193 for oem airbox/exhaust combination ($79.95).  If removing the airbox and utilzing a K&N type Flanged Filter and/or racing, we recommend the Area P Customized Dynojet Kit #2193R which includes three additional sets of main jets, stainlesss steel allen head screws for carb top caps and float bowls, and allen wrench ($94.95).



Ninja 250R exhaust bracketExhaust Hanger Bracket - For those looking to eliminate the huge passenger peg assembly(s); Area P offers a high quality, low cost alternative. Weighs only 9 ounces. Precisely cut by CNC Laser, then formed on our NC press brake.  Two bends are incorporated starting at both the top and bottom.  This gradual bending technique results in less stress on the material, superior vibration damping (similar to "tuned flex"), and no clearance issues for those with aftermarket lowering links (no swing arm contact under compression). Available in a  Black Satin Powder Coat finish (*brushed satin finish is no longer available). Includes stainless steel mounting hardware. Price - $45

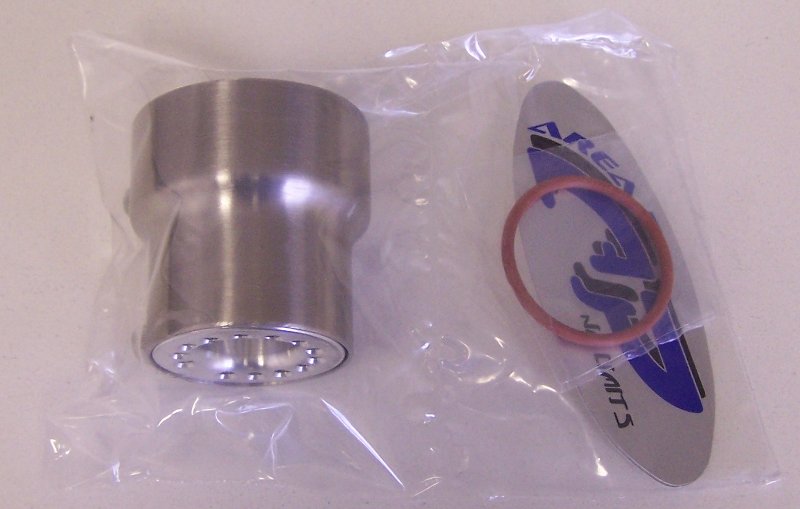

D.E.I. (Dual Element Insert) Sound Attenuator - Primarily designed for those wanting to reduce the sound level of the Standard Area P muffler*.  The D.E.I consists of a 304 series stainless steel "Nozzle" and 6061 billet cnc aluminum "Module" insert with high temp O-Ring.  Comes with detailed instructions and easy installation.   It can be used as simply the "Nozzle" by itself, or for further attenuation of sound, both the Nozzle and Billet module together. It will reduce decibel levels by 6 - 8 dbA. Price - $45.00

*NOTE - Primarily designed for the Standard Muffler.  Power will be reduced.  It will not be as quiet and/or perform as well as the Long Quiet Core Muffler.


WEIGHT SAVINGS

7 lbs


SOUND

Click here to hear our 250R Ninja on a dyno run (with standard muffler).

Static sound readings:

   Idle 5000rpm

Stock

Standard Muffler (12" long, 2.0" core)

79 dbA

90 dbA

93 dbA

105 dbA

Long Quiet Muffler (18" long, 1.75" core) 83 dbA 95 dbA



DYNO CHART

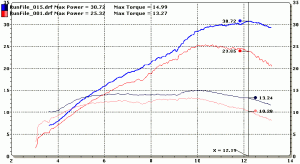

Kawasaki 250R Dyno Chart

Large increase in power averaging over 18%. At peak, there is a 28% increase in power. Power increase starts immediately from 2500 rpm and carries through peak at 12500 rpm, which is over 2000 rpm higher than the OEM exhaust. Very linear on both hp and tq. The stock fuel curve was slightly wavy from lean to rich on this particular test bike, but still within acceptable specs.   Chart shows results with the standard muffler.  The optional quiet muffler has very similar results.  After testing several other production bikes, we recommend Dynojet kit # 2193 or *Area P Customized Dynojet kit (# 2193R), to help optimize the fuel curve and further increase power, as the production bikes do have a tendancy to run lean in the low/mid range especially.  For your convenience, Area P has both Jet Kits available to order.

 *Area P customized Dynojet Kit includes 3 additional sets of main jets, stainless steel Allen Head screws for carb top caps and float bowls, Allen wrench.  Primarily used when oem airbox is removed and replaced with K&N Dual Flange air filter and Crankcase breather element and/or Racing.




Pricing
US$14.95 Area P Exhaust Port Gaskets (pair)
US$94.95 Customized Area P/Dynojet Kit
US$45.00 D.E.I. - Sound Attenuator
US$79.95 Dynojet Kit # 2193, Stage 2
US$45.00 Exhaust Hanger Bracket - Black
US$525.00 Full Stainless Steel System, 18" Quiet Carbon Fiber Muffler
US$495.00 Full Stainless Steel System, Standard 12" Carbon Fiber Muffler
US$475.00 Full Stainless Steel System, Standard 12" Stainless Muffler


For more information or to order, click here to contact us!
